Unicorn drill wire rope type tremie pipe
keyword：
Drilling Buckets & Augers

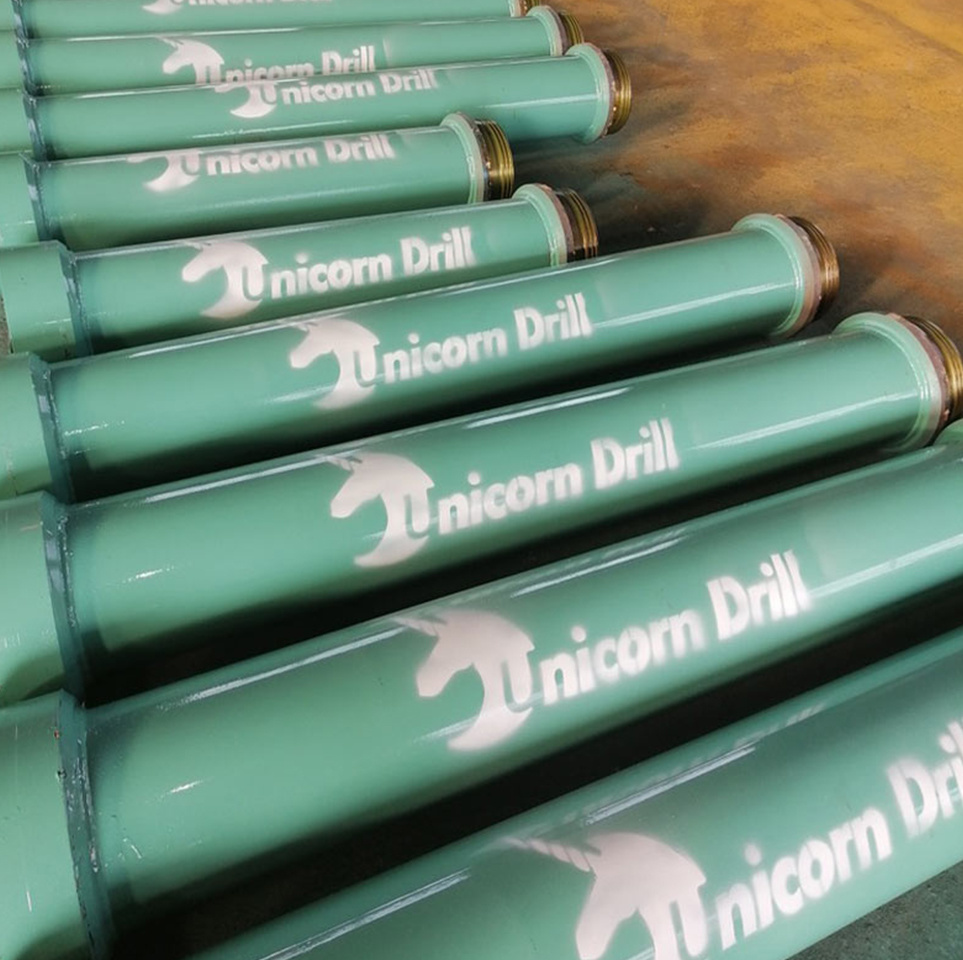

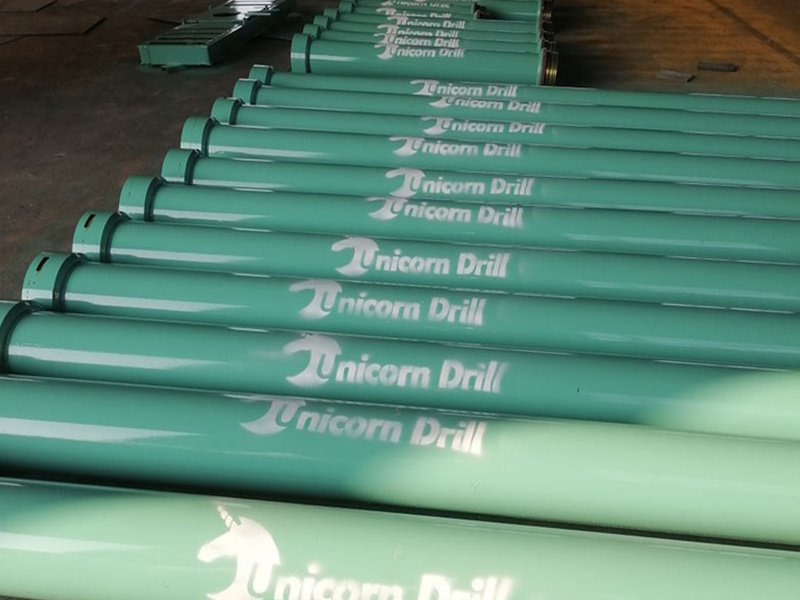

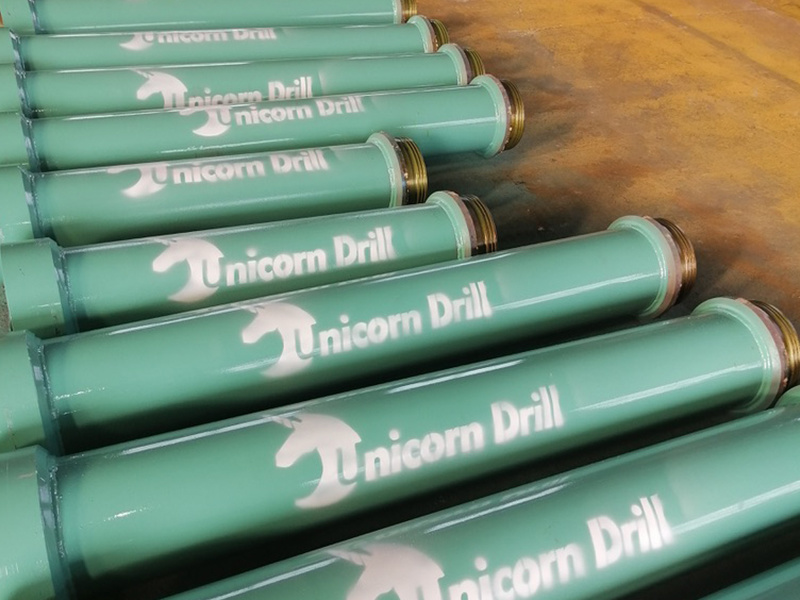

Unicorn drill wire rope type tremie pipe
 |
 |
During the operations they are lowered inside and through the steel cage reinforcement to protect concrete from soil contamination water filtering and to avoid any possible concrete quality corruption.
Unicorn Drill tremie pipes are made of quality drawn steel plates in order to guarantee high resistance elements.
Pipes section can be connected by two kinds of coupling systems:Threaded joints and wire cable joints
While threaded tremie pipes are equipped with male /female joints with thread,the wire cable system is designed for quick assembly/dismounting of the various pipe sections during the concreting operations.Using wire cables joints water and mud penetrations is prevented by O-ring seals applied in between male and female joints
Parameters
|
Female Joint (mm) |
Male Joint (mm) |
Tremie Pipe (mm) |
Tremie Pipe Thickness (mm) |
Weight for 1m （Kgs）
|
|
260 |
240 |
219 |
3 |
30 |
|
306 |
286 |
269 |
3 |
32 |
|
345 |
322 |
300 |
3 |
40 |
*Other dimensions are available on request.
