Bauer type Double Wall Bore casing
Thickness: 40mm-60mm or customized
Length:1-6m or customized
15+ years history
200+ good feedback
Customized services
Bauer type Double Wall Bore casing
Products details
Casing Adaptor, Casing Drive, Casing Joint, Casing Shoe, Casing Teeth, Drilling Casing
The other sizes and requirement can be manufactured
1.Casing Tubes
• Material: High-strength alloy steel.
• Diameter: 600–3000 mm (customizable).
• Wall Thickness: 10–50 mm.
• Length: 1–6 m standard, customizable on request.
• Connection Type: Welded.

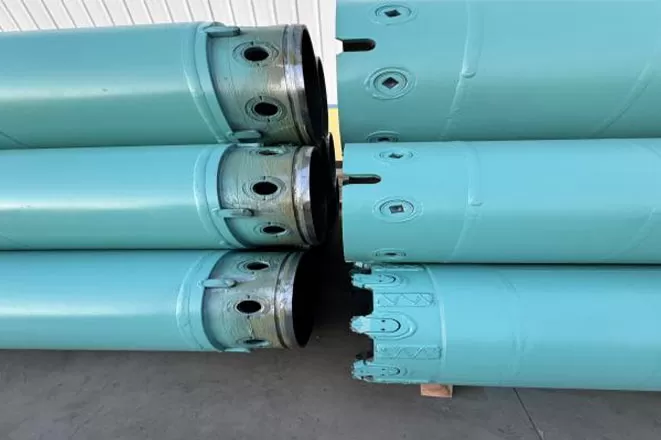

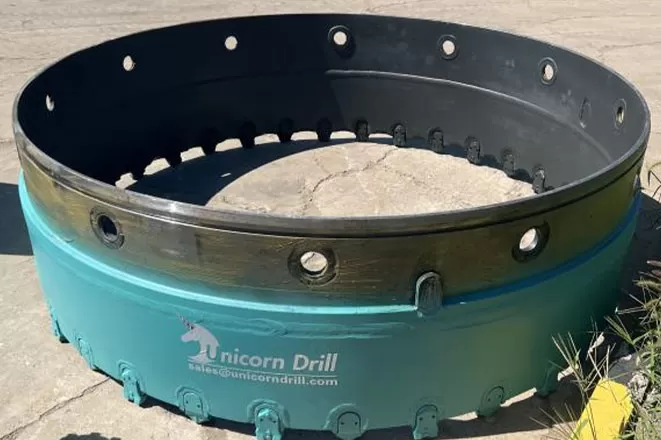

2. Casing Shoes
• Material: High-grade steel and casing teeth with tungsten carbide reinforcement.
• Outer Diameter: Matches casing tube dimensions.
• Cutting Edge: Replaceable or fixed.

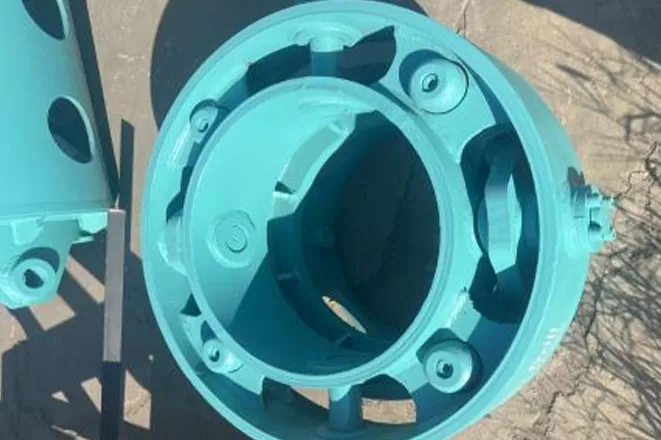

3.Casing Joints
• Material: Q355B/25CrMo.
• Connection Strength: Up to 800 kN.
• Type: OEM.
4.Casing Driver
• Material: Q355B.
• Type: OEM.

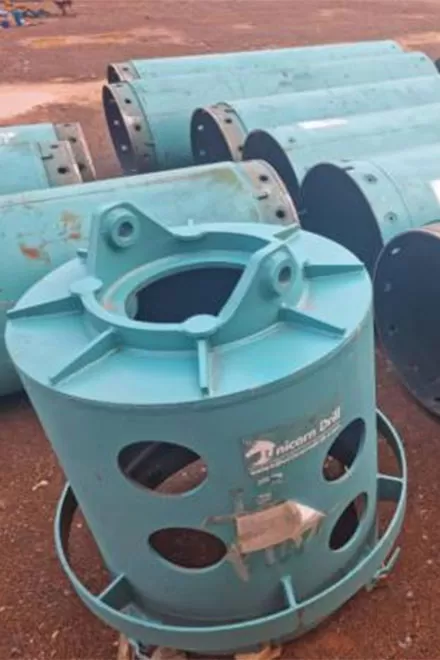

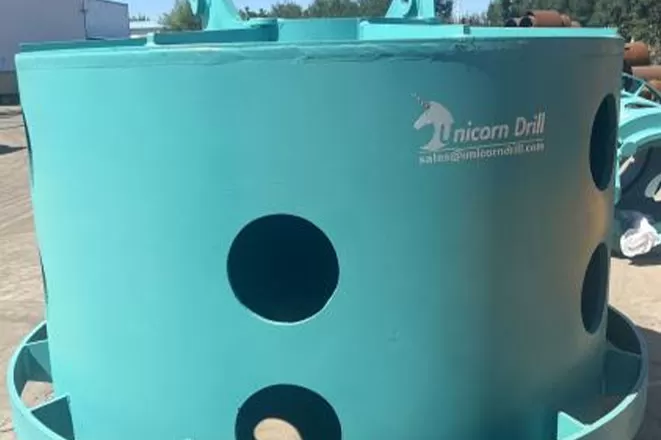

5.Casing Adaptor
• Material: Q355B.
• Type: OEM.
Parameters
| Diameter | Length | Casing-wall Thickness-1 | Casing-wall Thickness-2 | Bolt QTY | |||||
| DI /D2 | 1m | 2m | 3m | 4m | 5m | 6m | a1 | a2 | bolts |
| (mm) | Weight(kg) | (mm) | (mm) | (nos) | |||||
| 1300/ 1 200 | 845 | 1475 | 2105 | 2735 | 3365 | 3995 | 20 | 40 | 12 |
| 1500/ 1400 | 1310 | 2220 | 3130 | 4040 | 4950 | 5860 | 25 | 50 | 12 |
| 1800/ 1700 | 1580 | 2675 | 3770 | 4865 | 5960 | 7055 | 25 | 50 | 16 |
| 2000/ 1880 | 2140 | 3355 | 4570 | 5785 | 7000 | 8215 | 25 | 50 | 16 |
| 2200/2080 | 2350 | 3690 | 5030 | 6370 | 7710 | 9050 | 25 | 60 | 16 |
| 2500/2380 | 2575 | 4100 | 5625 | 7150 | 8675 | 10200 | 25 | 60 | 16 |
*other sizes can be manufactured as per customer demand( Include shell length/thickness and etc) *SUITABLE SOILMEC,IMT,MAIT,BAUER AND ALL CHINESE BRAND MACHINES
Features
• Corrosion Resistance: Special surface treatments for enhanced longevity.
• Precision Fit: Ensures strong and stable connections.
• High Compatibility: Works seamlessly with rotary rigs and various drilling tools.
• Wear Resistance: Designed for long-term use in demanding conditions.
Advantages
• Enhanced Durability: Made from high-strength steel (XT52/B355B/25CrMo)to withstand heavy loads and abrasive conditions.
• Customization: Flexible sizes and designs to meet diverse project requirements.
• Cost-Effective: Long service life reduces maintenance costs.
• Ease of Use: Precision engineering ensures quick assembly and disassembly
Our Services
1.24-Hour Online Support
• We’re available 24/7 to assist you with inquiries, troubleshooting, or professional technical support.
• You can reach us anytime via email, live chat, or phone for fast, expert help!
2.After-Sales Service
• Fast technical support for any issues
• Maintenance tips and guidance
• Warranty protection for peace of mind
3.Visual Production
• Track your order in real time with our Visual Production service:
• Receive production updates with photos and videos
• Stay informed about the status of the order from start to finish

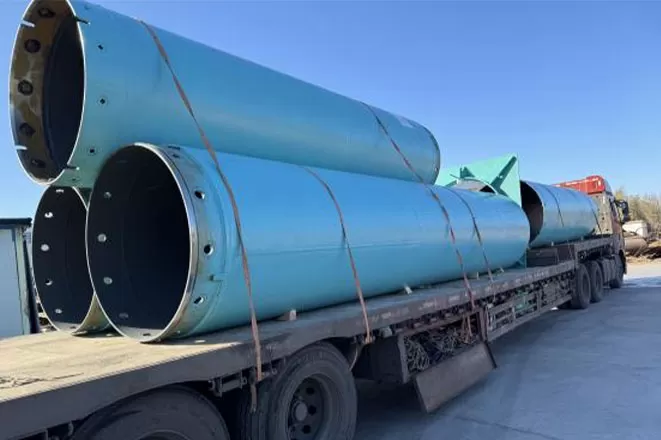

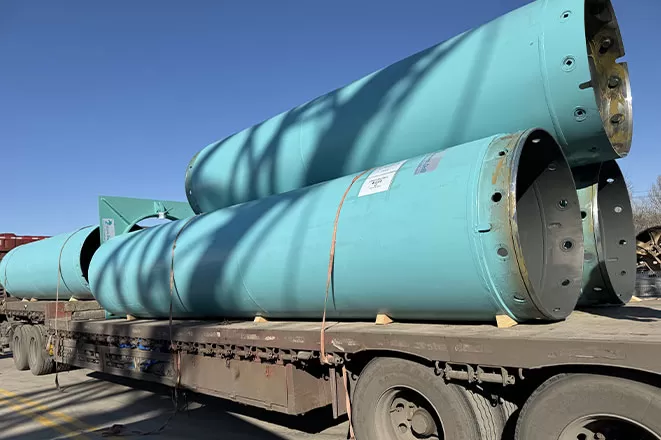

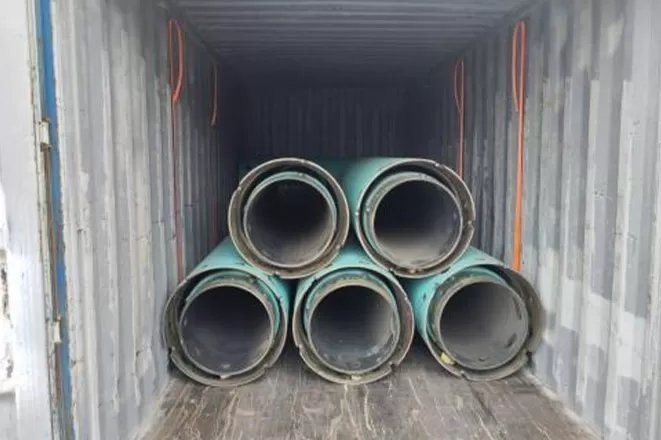

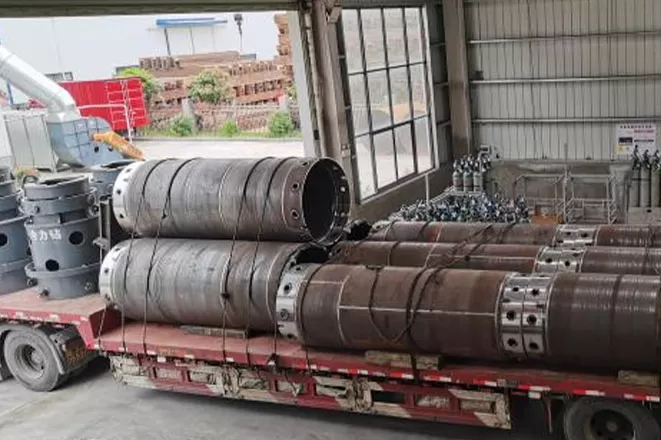

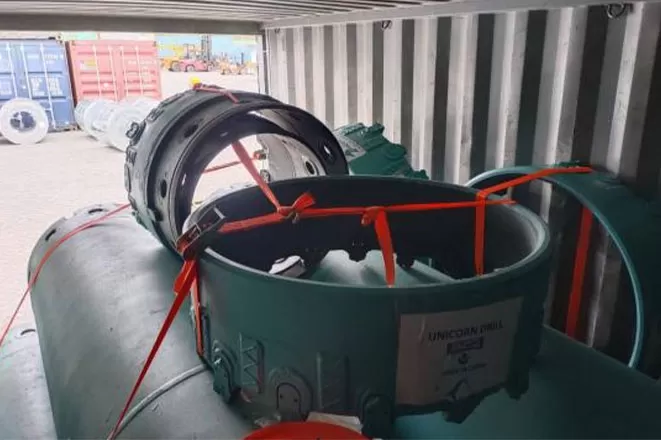

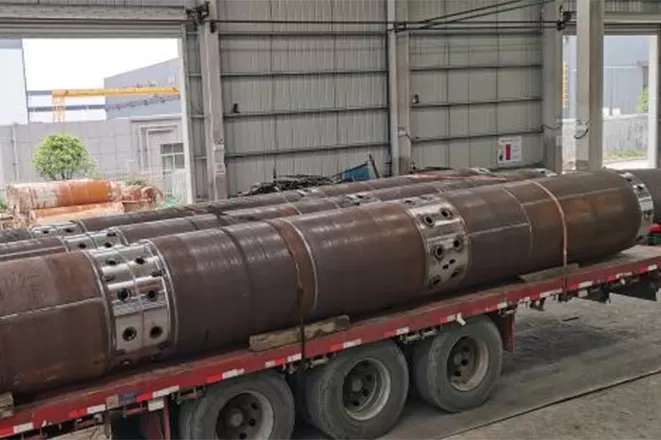

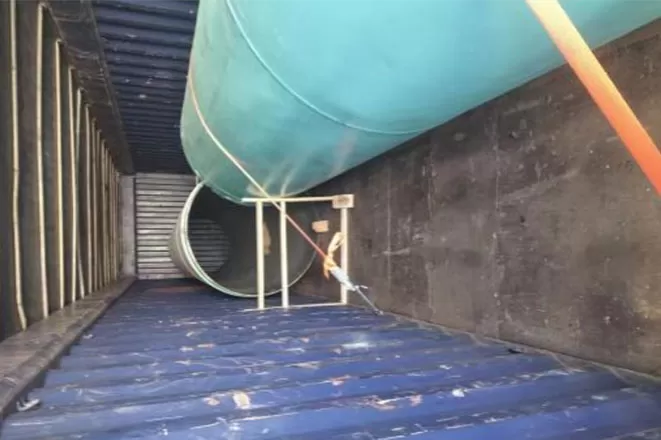

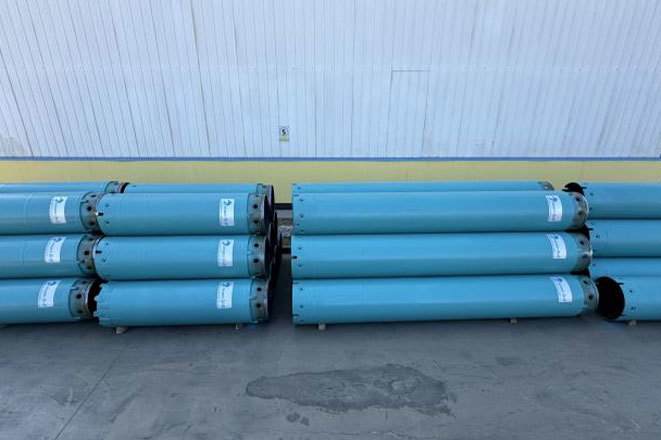

Delivery & Packaging

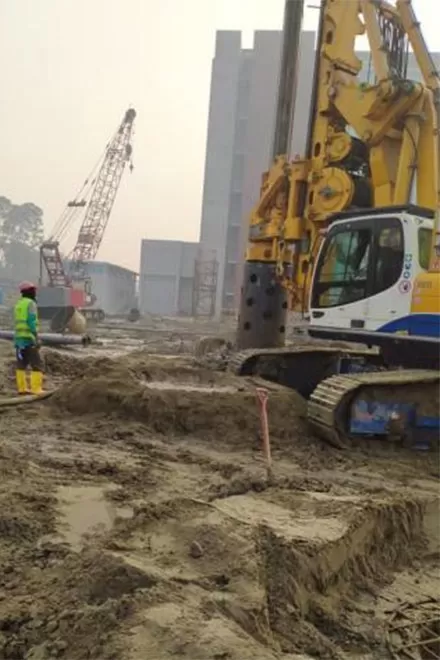

Feedback

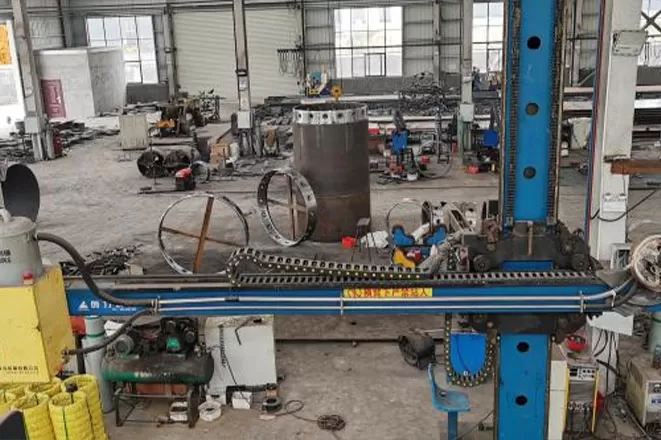

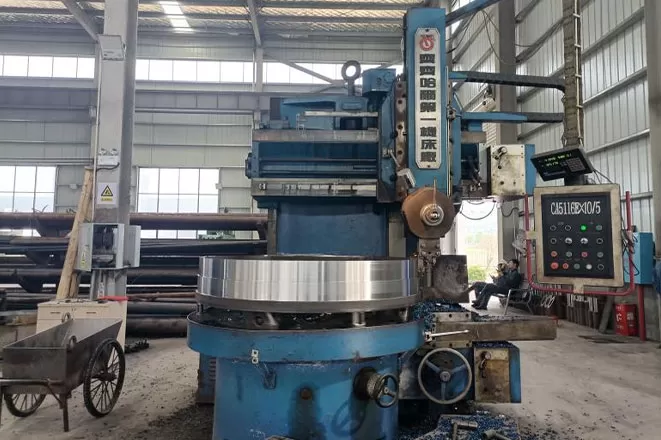

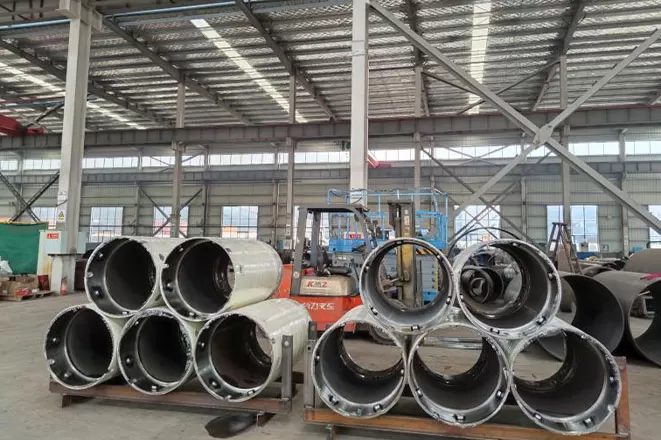

Workshop
