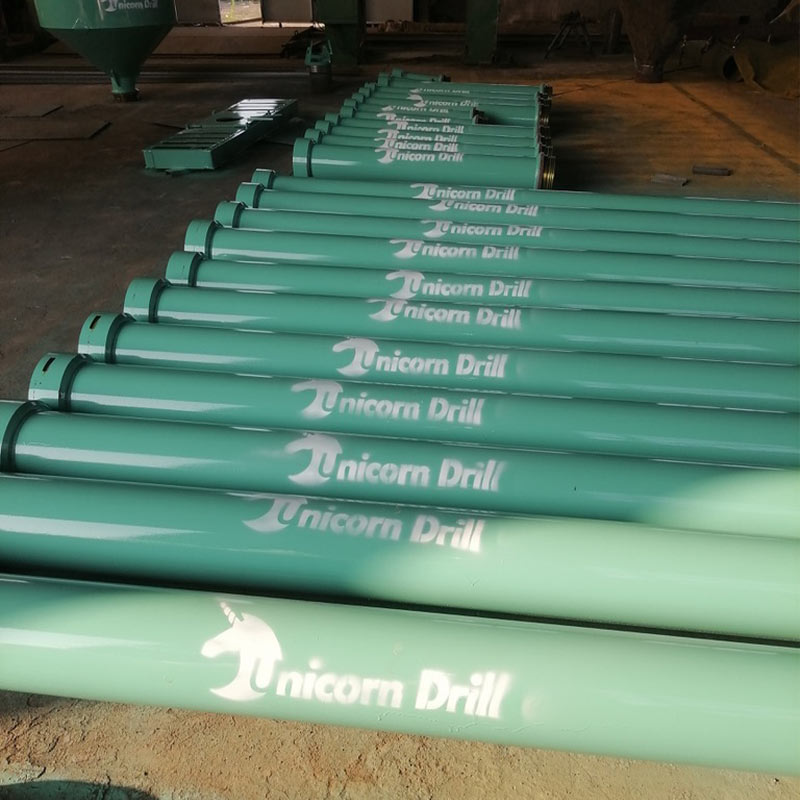

Unicorn Drill Tremie Pipe

Categories ,

For ODM/OEM Services, CONTACT US for details.

Share to
During the operations they are lowered inside and through the steel cage reinforcement to protect concrete from soil contamination water filtering and to avoid any possible concrete quality corruption. Unicorn Drill tremie pipes are made of quality drawn steel plates in order to guarantee high resistance elements. Pipes section can be connected by two kinds of coupling systems:Threaded joints and wire cable joints While threaded tremie pipes are equipped with male /female joints with thread,the wire cable system is designed for quick assembly/dismounting of the various pipe sections during the concreting operations.Using wire cables joints water and mud penetrations is prevented by O-ring seals applied in between male and female joints

Specifications

Threaded Tremie Pipes
Female Joint (mm) Male Joint (mm) Tremie Pipe (mm) Tremie Pipe Thickness (mm) Weight for 1m Kgs
260 240 219 3 30
306 286 269 3 32
345 322 300 3 40
*Other dimensions are available on request.
Tremie Pipes with Wire Cables
Female Joint
(mm)
Male Joint
(mm)
Tremie Pipe
(mm)
Tremie Pipe Thickness
(mm)
Weight for 1m
Kgs
260240219330
274248219340
325294260348
374338300365

*Other dimensions are available on request.
